| Place of Origin: | Baoding |
| Brand Name: | LLHJ |
| Certification: | ISO9001:2008,GB/T19001:2008 |
| Model Number: | SPC-01 |
| Minimum Order Quantity: | 500 square meters |
|---|---|
| Price: | contact: sales@worldtop.ltd sales@llhjtrading.com |
| Packaging Details: | pe film on both sides |
| Delivery Time: | Depands on quantites ordered,7-15 days against purchase order in general. |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 600tons/month |
| Thickness: | 1.2-15mm | Size: | 2100*5800mm |
|---|---|---|---|
| Material: | PC |

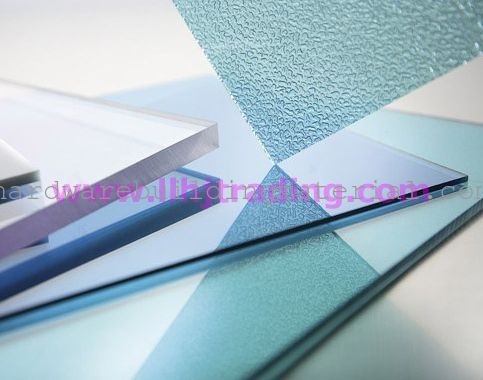

Flat Solid Polycarbonate Sheet 10 Years Guarantee
Specifications:
Thickness:1.2mm-15mm
Size:2100mm*5800mm
10 yrars warranty
ISO9001:2008 certification
Solid Polycarbonate sheet with the highest clarity and transparency second to none. It is highly durable against severe
weather conditions, strong, and having impact strength 250 times stronger than glass. It is very suitable for roofing,
glazing, partitions, staircase, embossed door panels, carports, canopies, gazebos, greenhouses, skylights, neon
signage, LED signage, outdoor billboards, advertising display and many others. SolarFlat makes our dream in
decorating the ultimate building structure become reality. 10 years warranty.
|
Color Available |
Width |
Thickness |
Weight |
Min Curving Radius |
Min Span Accordingly(mm) |
|
(mm) |
(mm) |
(kg/m2) |
(mm) |
||
|
Clear |
1220 |
1.5 |
1.8 |
270 |
540 |
|
2.0 |
2.4 |
360 |
720 |
||
|
2.4 |
2.88 |
430 |
860 |
||
|
3.0 |
3.6 |
540 |
1080 |
||
|
3.8 |
4.56 |
680 |
1360 |
||
|
4.0 |
4.8 |
720 |
1440 |
||
|
5.0 |
6 |
900 |
1800 |
||
|
6.0 |
7.2 |
1080 |
2160 |
||
|
8.0 |
9.6 |
1450 |
2900 |
||
|
9.0 |
10.8 |
1620 |
3240 |
||
|
10.0 |
12 |
1800 |
3600 |
||
|
12.0 |
14.4 |
2160 |
4320 |
|
Technical data: |
||
|
Characteristics |
Unit |
Data |
|
Impact strength |
J/m |
2.1 |
|
Light Transmission |
% |
50-85 |
|
Specify Gravity |
g/m |
1.2 |
|
Coefficient Thermal Expansion |
mm/m℃ |
0.065 |
|
Service Temperature |
℃ |
-40℃---+120℃ |
|
Heat conductivity |
W/m2℃ |
3.0-5.0 |
|
Flexural strength |
N/mm2℃ |
100 |
|
Modulus of elasticity |
Mpa |
2400 |
Features
1) High light transmission: over 82%
2) Excellent impact resistance: 80 times of same thick glass.
3) Weather and UV resistant-properties retained for years.: Temperature resistance range is -40°C ~ +120°C, with an
ultraviolet coextruded film on the sheet surface. It can prevent the resin fatigue or yellowing caused by the ultraviolet.
4) Light weight: only 1/12 of the weight of glass of the same thickness. It can be easily cold bent as well as thermal
shaping.
5) Flame resistance: High fire performance rating is class B1.
6) Sound and heat insulation: Superb sound insulation for freeway barrier and super thermal insulation save energy.
7) An engineering plastic of excellent integration capability. It has outstanding physical, mechanical, electrical and heat
capabilities.
