| Place of Origin: | Baoding |
| Brand Name: | LLHJ |
| Certification: | ISO9001:2008,GB/T19001:2008 |
| Model Number: | PS2-B |
| Minimum Order Quantity: | 300 square meters |
|---|---|
| Price: | contact: sales@worldtop.ltd sales@llhjtrading.com |
| Packaging Details: | pe film on both sides |
| Delivery Time: | Depands on quantites ordered,7-15 days against purchase order in general. |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 600tons/month |

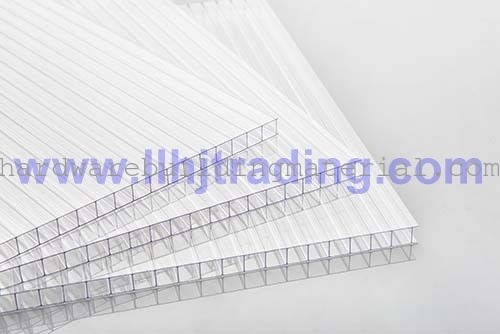

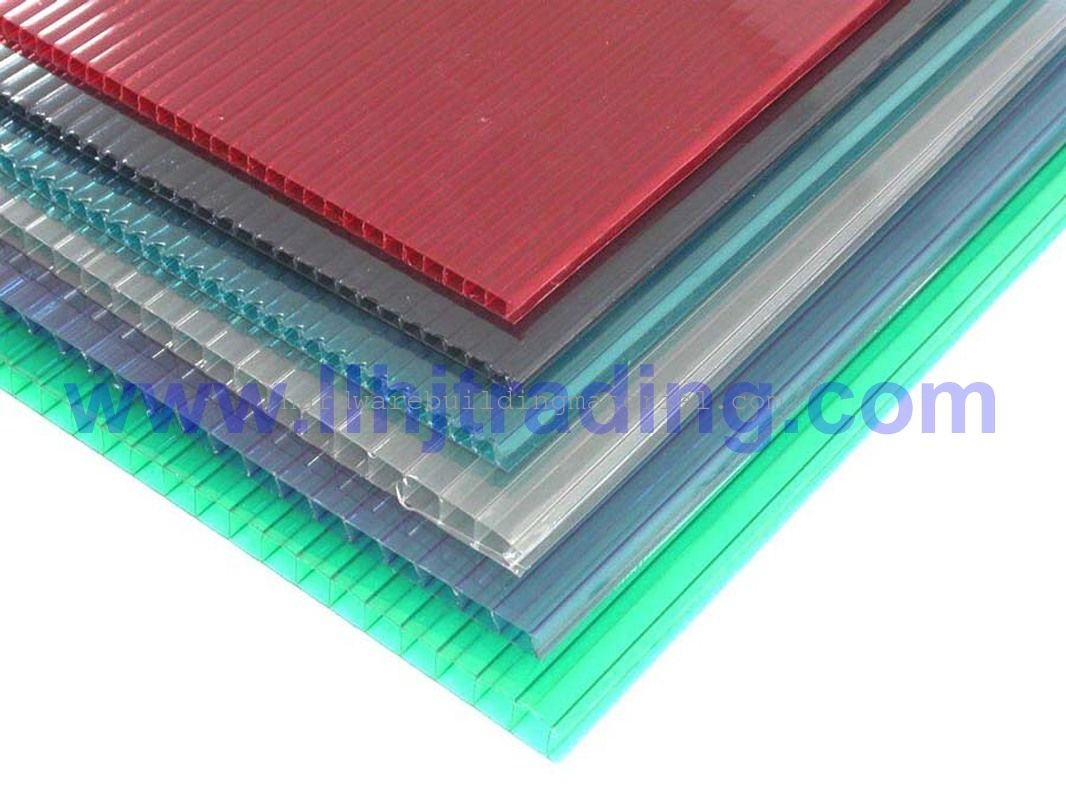

Anti-drip Twin Wall Hollow Polycarbonate Sheet
Specifications:
Thickness:3mm-12mm
Standard Width:2.1m
Standard Length:6m
Color:Clear,Lake Blue,Green,Coffee,White
Material:100% virgin polycarbonate
Guarantee:5 years or 10 years
PLEASE NOTE THAT THE WIDTH,LENGTH AND THE COLORS,WE CAN PRODUCE UNDER CUSTOMERS' REQUIREMENTS.OEM WELCOME!
Applications:
Widely used in a variety of architectural lighting roof and interior decoration ; train station and airport waiting room and overpass, channel roof; roof garden ornaments and the bus station, ferry terminals and other public service facilities; skylight, cellar, vaulted ceiling roof and shopping malls; tourism, recreation places strange decor and Gallery Hall; translucent thermal insulation and sound insulation barrier, advertising signs, advertising light boxes and show exhibition deployment; senior interior decoration board.
| Thickness | Weight(kg/m2) | Minimum Bending Radius |
Transmittance%(±3%)
|
|||||
| Clear | Coffee | White | Lake Blue | Diamond Blue | Green | |||
| 4mm | 0.9 | 700mm | 80 | 58 | 57 | 55 | 45 | 45 |
| 6mm | 1.3 | 1050mm | 79 | 50 | 56 | 50 | 36 | 42 |
| 8mm | 1.5 | 1400mm | 78 | 44 | 52 | 47 | 30 | 40 |
| 10mm | 1.7 | 1750mm | 78 | 40 | 44 | 42 | 28 | 35 |
| 12mm | 2.2 | 2100mm | 75 | 38 | 42 | 40 | 25 | 34 |
|
Technical data of Multi-wall Sheets |
||||
|
NO |
Characteristics |
Unit |
Data |
|
|
1 |
|
Specific Gravity |
g/cm3 |
1.2 |
|
2 |
|
Impact Strength |
J/m |
850 |
|
3 |
|
Tensile Strength |
N/ mm2 |
> 60 |
|
4 |
|
Flexural Strength |
N/ mm2 |
100 |
|
5 |
|
Modulus of Elasticity |
MPa |
2400 |
|
6 |
|
Elongation at Break |
% |
100 |
|
7 |
|
Coefficient of Thermal Expansion |
mm/m℃ |
0.065 |
|
8 |
|
cific Heat |
kJ/kgK |
1.17 |
|
9 |
|
Heat Conductivity |
W/ m²℃ |
2.3 ~ 3.9 |
|
10 |
|
Continuous Use Temperature |
℃ |
-40 ~ +120 |
|
11 |
|
Heat Deflection Temperature |
℃ |
140 |
|
12 |
|
Fire Rating |
|
GB8624-1997 B1 |
|
13 |
|
UV Protection layer |
μm |
50 |
Note:Different thickness with different datas,send email for exact datas of the thickness you need.
