| Place of Origin: | china |
| Brand Name: | LLHJ |
| Certification: | ISO |
| Model Number: | SP0420 |
| Minimum Order Quantity: | 10000pcs |
|---|---|
| Price: | contact: sales@worldtop.ltd sales@llhjtrading.com |
| Packaging Details: | carton or plastic bags |
| Delivery Time: | 15-35 days,depands on quantites ordered |
| Payment Terms: | T/T,L/C at sight |
| Supply Ability: | 1000000 pcs/month |
| Plastic Modling Type: | Injection |
|---|

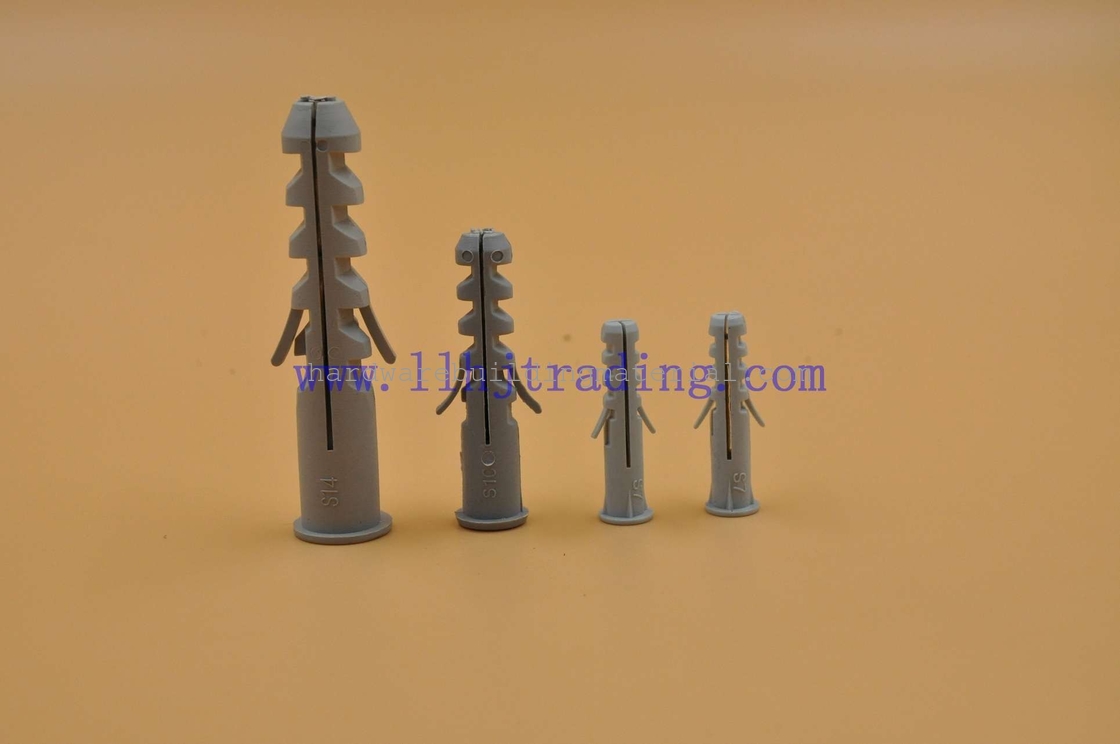

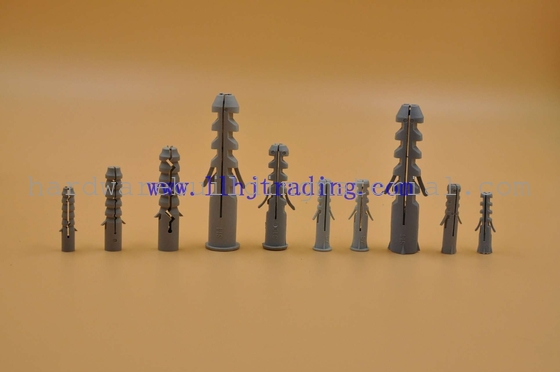

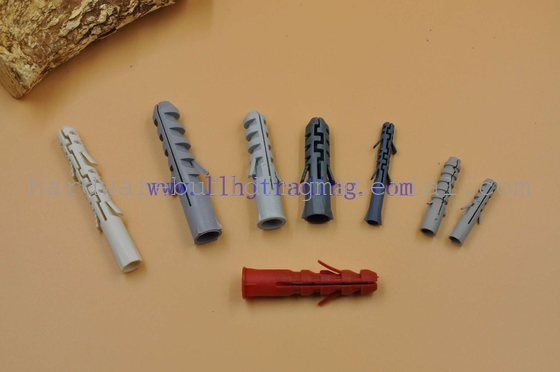

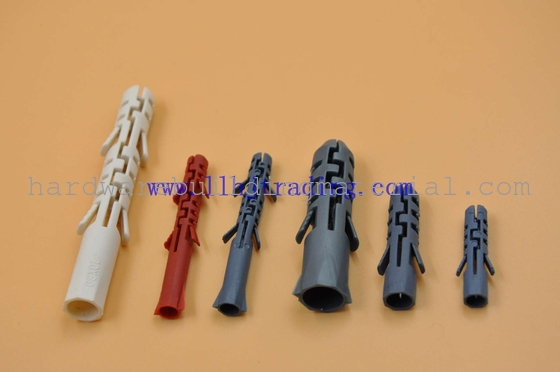

This Nylon hammer drive Anchor with Nail Screw is inserted loosely into a drilled hole, then a screw is tightened into the centre.
The screwing action wedges the plug firmly in place, the soft material conforming tightly to the masonry. Such fasteners can attach one object to another in situations where screws, nails, adhesives, or other simple fasteners are either impractical or ineffective. Different types have different levels of strength and can be used on different types of surfaces.
Specifications:
| ORDER CODE | ANCHOR SIZE | NAIL SIZE | DRILL DIA | PRACT.APPLIC | QUANTITY PER |
| (MM) | MAX (mm) | INNER/OUTER | |||
| HF0530C | 5*30 | 3.5*35 | 5 | 5 | 200/4000 |
| HF0535C | 5*35 | 3.5*40 | 5 | 10 | 200/4000 |
| HF0540C | 5*40 | 3.5*45 | 5 | 15 | 200/4000 |
| HF0545C | 5*45 | 3.5*50 | 5 | 20 | 200/4000 |
| HF0550C | 5*50 | 3.5*55 | 5 | 25 | 200/4000 |
| HF0635C | 6*35 | 4*40 | 6 | 6 | 200/4000 |
| HF0640C | 6*40 | 4*45 | 6 | 10 | 200/4000 |
| HF0650C | 6*50 | 4*55 | 6 | 15 | 200/4000 |
| HF0660C | 6*60 | 4*65 | 6 | 30 | 200/4000 |
| HF0670C | 6*70 | 4*75 | 6 | 40 | 200/4000 |
| HF0680C | 6*80 | 4*85 | 6 | 50 | 100/1000 |
| HF0850C | 8*50 | 5*55 | 8 | 15 | 100/1000 |
| HF0860C | 8*60 | 5*65 | 8 | 20 | 100/1000 |
| HF0880C | 8*80 | 5*85 | 8 | 40 | 100/1000 |
| HF08100C | 8*100 | 5*105 | 8 | 60 | 100/1000 |
| HF08115C | 8*115 | 5*120 | 8 | 80 | 100/1000 |
| HF08135C | 8*135 | 5*140 | 8 | 90 | 100/1000 |
| HF1080C | 10*80 | 7*85 | 10 | 40 | 50/500 |
| HF10100C | 10*100 | 7*105 | 10 | 50 | 50/500 |
| HF10120C | 10*120 | 7*125 | 10 | 80 | 50/500 |
| HF10140C | 10*140 | 7*145 | 10 | 90 | 50/500 |
| HF10160C | 10*160 | 7*165 | 10 | 110 | 50/500 |
